C&I · hybrid · liquid cooling
AlphaESS STORION-LC-H125

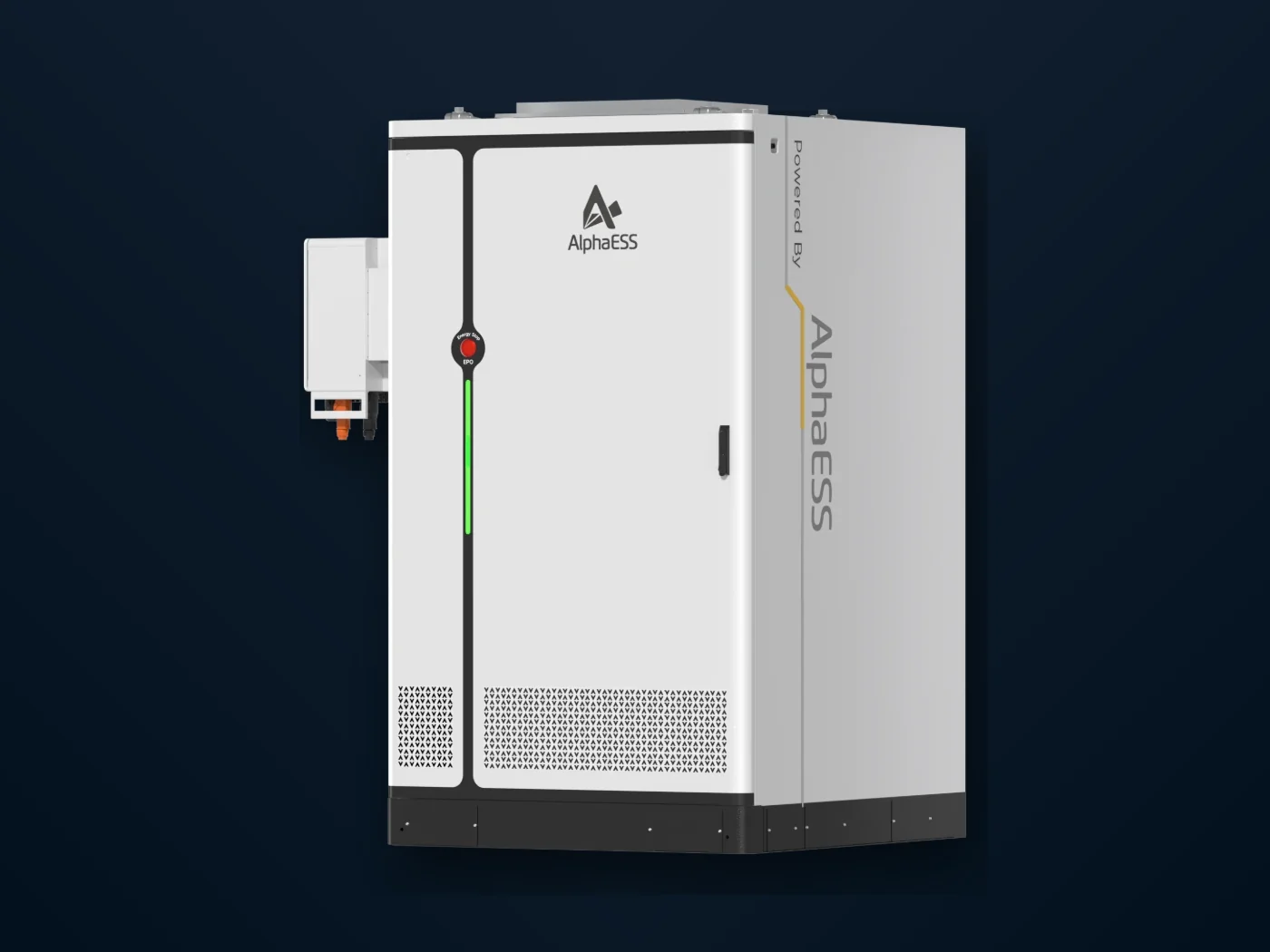

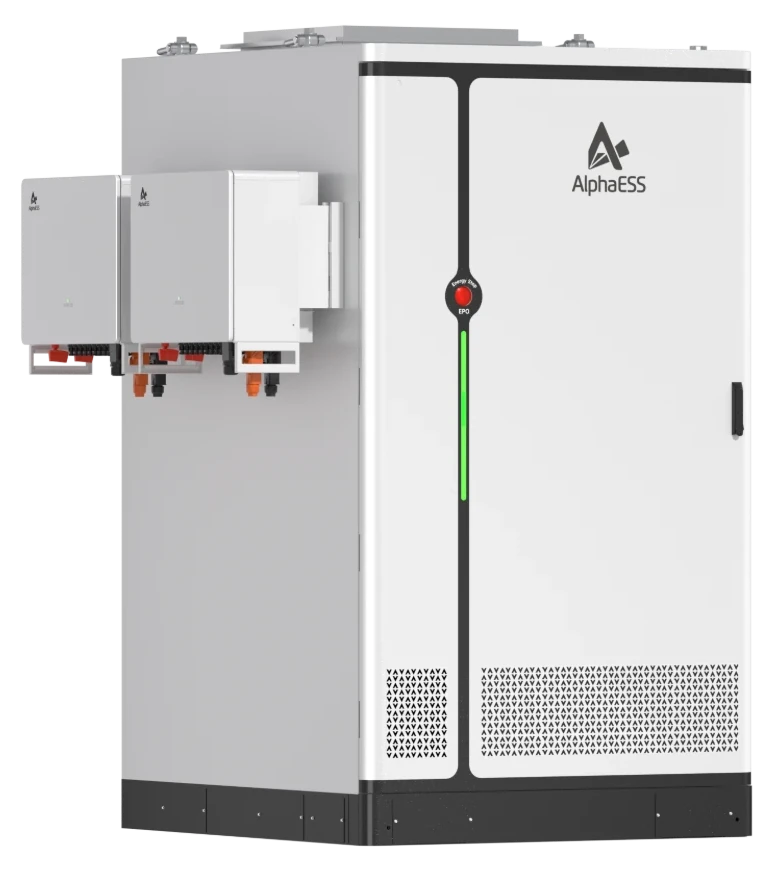

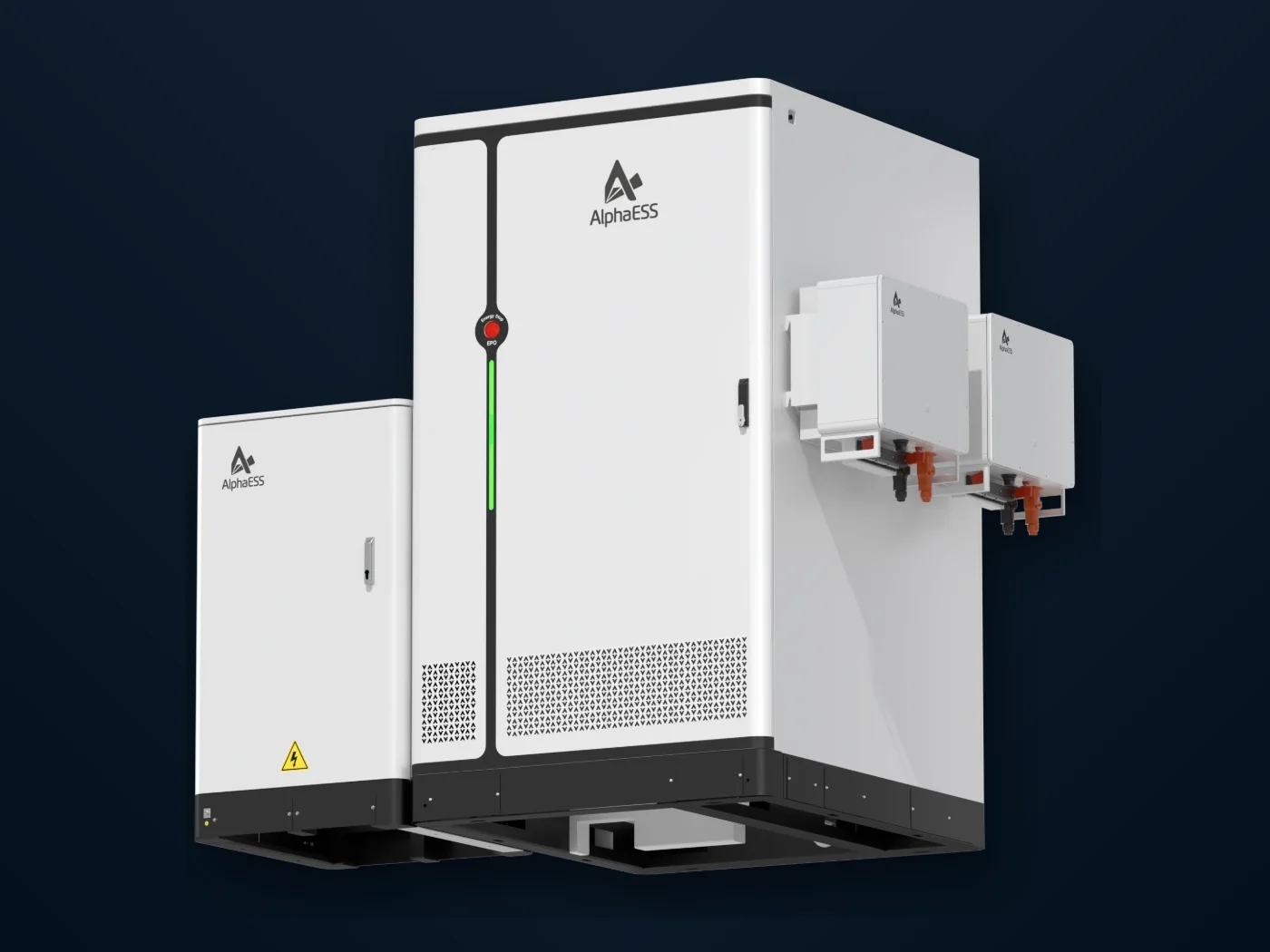

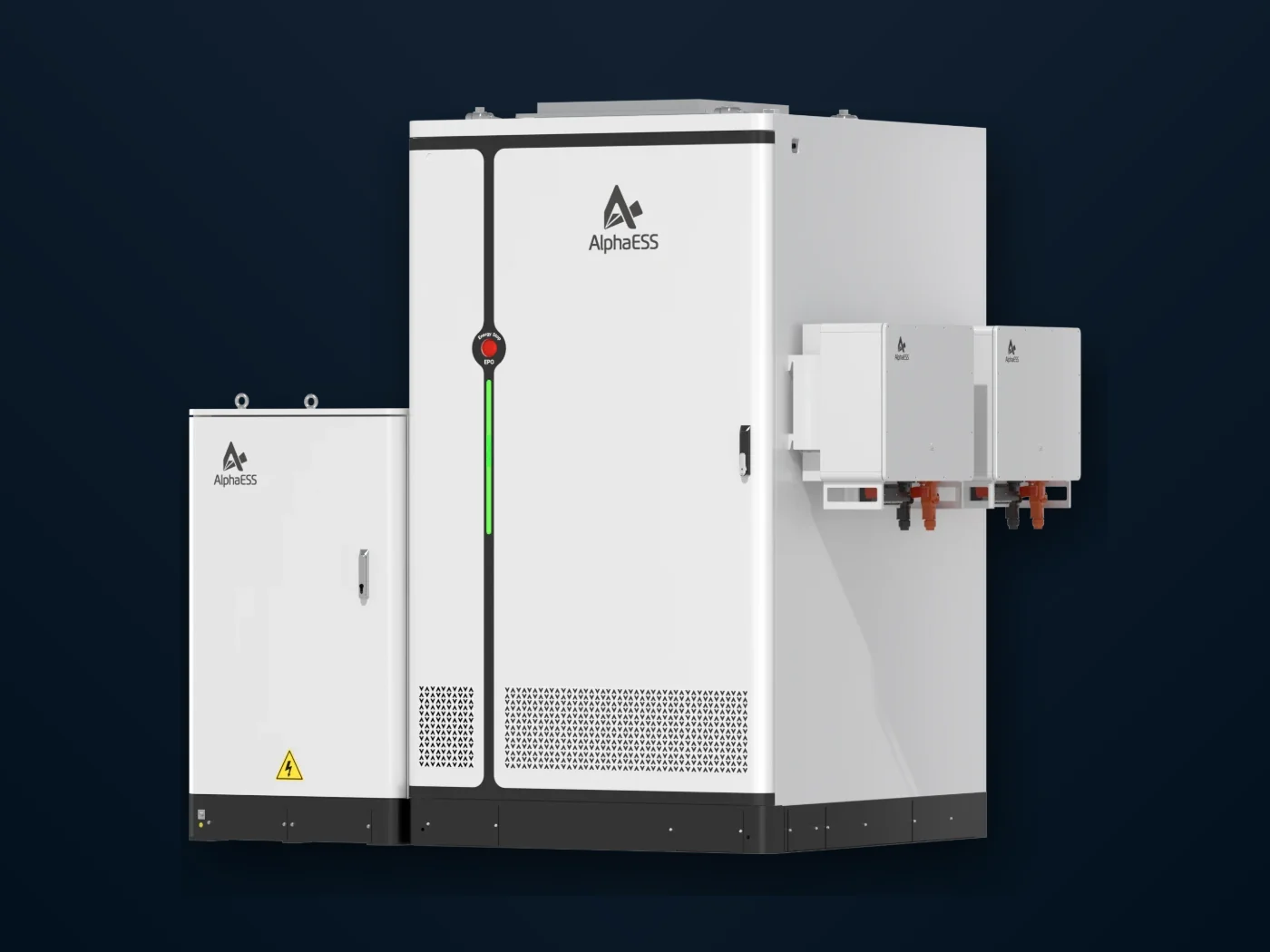

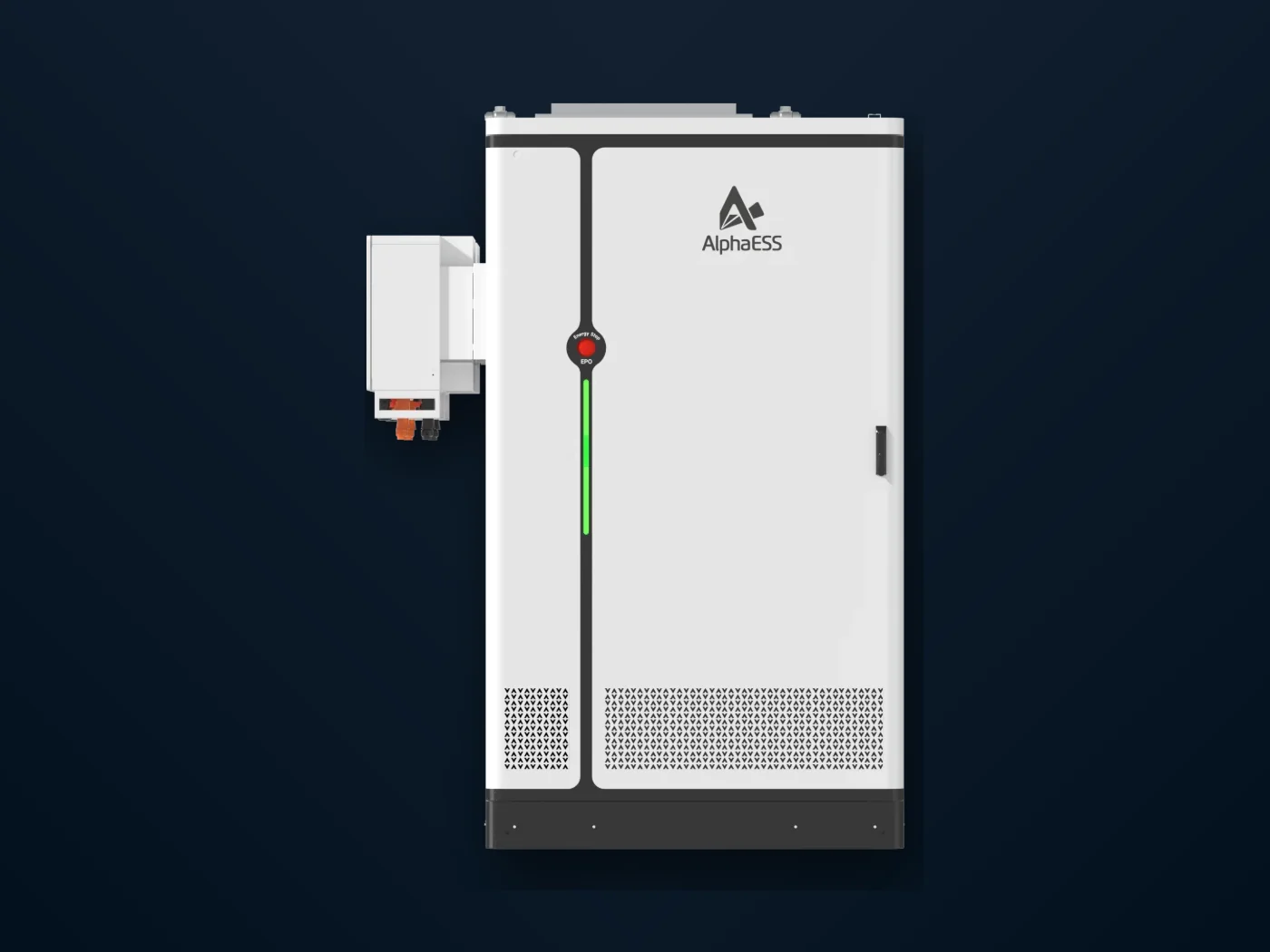

A hybrid on the TB125 platform: a 125 kW / 261.2 kWh liquid-cooled cabinet plus external PV DC/DC modules — solar panels up to 250 kWp charge the battery directly, with no separate PV inverter. The DC/DC and STS cabinets stack beside the system cabinet.
$153/kWh · excl. VAT (expansion — $146)
Technical specifications
- Price
- $153/kWh excl. VAT · hybrid cabinet 261.2 kWh — $39,964 · expansion module 261.2 kWh — $146/kWh, $38,135 · PV DC/DC modules — quoted in the proposal
- STS cabinet
- 300 kW — $5,250 · 600 kW — $7,300 · 800 kW — $15,645
- Type
- Hybrid (DC-coupled PV) · outdoor all-in-one cabinet · liquid cooling
- Power
- 125 kW (125 kVA at 45 °C) · 137.5 kVA max
- PV input
- Up to 250 kWp · 16 MPPTs (DC/DC modules) · string Voc up to 700 V · 200% oversizing
- Capacity
- 261.2 kWh per cabinet · with the expansion module — 522.4 kWh per system
- Battery
- LFP · M166314-S module · 1P260S · 5 modules in series · 702–936 V
- Charge/discharge
- 130.6 kW (0.5 P) · cycle life ≥ 8,000 (0.5 P, 25 °C)
- AC output
- 400 V · 3L/N/PE · 50/60 Hz · THDi/THDu < 3% · max efficiency 99%
- Overload
- 110% continuous · 120% for 1 min
- Backup
- STS up to 20 ms (separate STS cabinet)
- Fire safety
- Aerosol + sprinkler · UL 9540A
- Dimensions · weight
- (1,050 + 400) × 1,500 × 2,450 mm (system + side cabinet) · 3.7 t
- Enclosure
- IP55 · −20…+50 °C (derating above 45 °C) · up to 3,000 m (derating above 2,000 m) · Modbus TCP
- Certification
- IEC 62477 · IEC 61000 · IEC 62109 · EN 50549 · VDE 4105 · G99 · AS 4777.2 · IEC 62619 · UL 9540A
- Warranty
- Per AlphaESS terms — quoted in the proposal
Based on the AlphaESS STORION-LC-H125-EX datasheet V01 (12.2024); the price list names the model STORION-LC-H-125 EX (export version). Indicative equipment prices in USD excl. VAT as of October 2026; installation, commissioning and grid connection are quoted in the proposal.
FAQ
How does STORION-LC-H125 differ from STORION-LC-TB125?
It is the same 125 kW / 261.2 kWh liquid-cooled cabinet, but with a PV input: external DC/DC modules with 16 MPPTs accept solar strings up to 700 V and up to 250 kWp — twice the PCS rating (200% oversizing). Solar charges the battery over the DC bus without a separate PV inverter or double conversion; the operating mode is selectable and the configuration is confirmed in the feasibility study. TB125 is purely AC-coupled: PV connects to it through its own inverter on the AC side.
Which sites choose LC-H125, and how does it scale?
Factories, warehouses and agribusinesses with roof space for a 150–250 kWp PV plant: the battery stores solar during the day, discharges into the evening DAM peak and tops up at the cheap night tariff; the STS cabinet keeps backup within 20 ms. The 261.2 kWh expansion module doubles capacity to 522.4 kWh per system; further scaling is by paralleling cabinets — the configuration is confirmed in the feasibility study.
How much does STORION-LC-H125 cost?
$153/kWh excl. VAT for the equipment — $39,964 for the 261.2 kWh hybrid cabinet; the 261.2 kWh expansion module is $146/kWh, $38,135. The STS cabinet is $5,250 (300 kW), $7,300 (600 kW) or $15,645 (800 kW). PV DC/DC modules are sized to the PV plant and quoted in the proposal. Send your hourly consumption profile and roof parameters — within 2 business days we return a feasibility study with budget and payback.
